Proxmark 3 RDV4.01- Long Range LF Antenna Pack

  • €89.95


Introduction

The Proxmark 3 RDV4 has a modular antenna system, allowing for antennas to be hot-swapped depending on your assignment requirements.

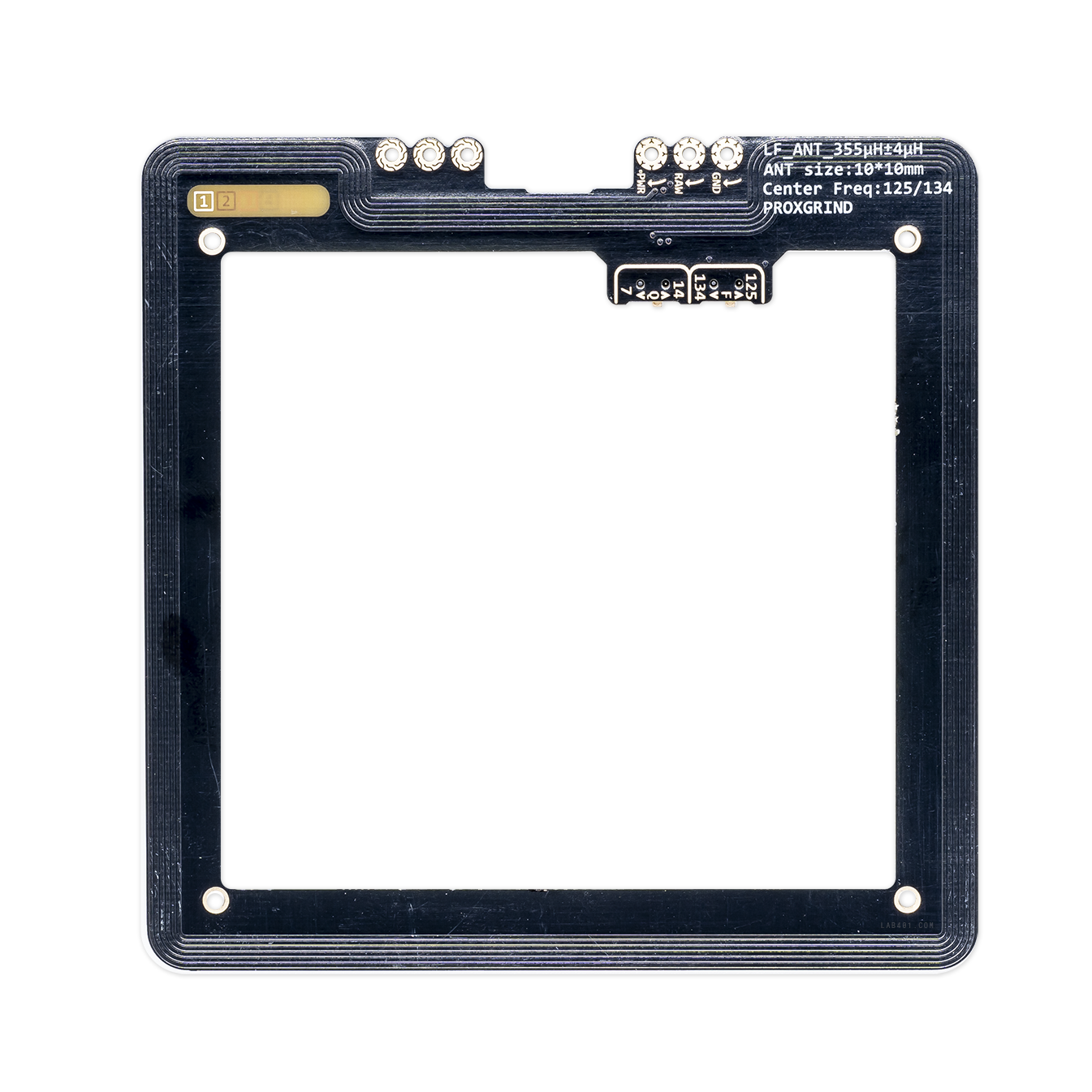

The Long Range LF External Antenna Pack containts two high performance, pre-tuned for antennas the Proxmark 3 RDV4, providing the highest read/write/sniff performance possible on an un-amplified external antenna.

Meticulously engineered with 6-layer PCBs, featuring a Frequency Switch and Q Switch - enabling targeting of specific frequencies and badge types.

Q-Switch
The Q-Switch has two settings: 14 (Extended Range) and 7 (Extended Accuracy).

A Q-Switch setting of 14 will give up to 30% further read range (on lf search / lf hid read etc commands).

A Q-Switch setting of 7 will give better writing performance on T55XX and EM410XX tags.

Frequency Switch

The frequency switch allows for tuning to specific tag types: 125KHz or 134KHz.

Performance information is below:

Antenna Type Read Distance
LF Read Range (Built-in) 66 - 72mm
LF Read Range (medium antenna) 90mm
LF Read Range (long range antenna) 110 - 133mm

What's included

  • 1x Long Range Antenna
  • 1x Medium Range Antenna

    Shipping & Packaging

    • Each item is dispatched from Europe - no need to worry about slow shipping times, import duties or damaged goods.
    • Packed in sturdy packaging.
    • We provide worldwide shipping with express options.

    Compatible Systems
