Introduction
Spectrum Analysers allow you to observe radio signals visually in real-time.
For pentesters working with RF, Remotes or IoT, this tool allows you to quickly identify a target device's frequency, so you can prepare an appropriate attack: A classic example would be to identify the frequency of a target remote control: 30MHz, 433MHz or 866MHz.
The TinySA is an affordable, pocket-sized portable powerhouse, working from 100kHz to to 960MHz. On the go, use its touchscreen - at the desk, it connects to your workstation expanded functionality.
The TinySA also has a built-in signal generator (useful for tests, or even close-range roll-jam functionality) capable of generating sine & square-wave signals from 0.1MHz - 950MHz.

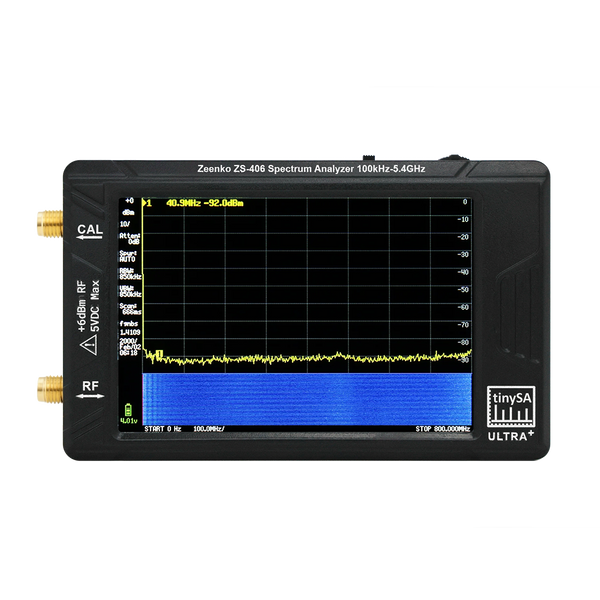

As an Open Source device, there are multiple versions available. Lab401 stocks the TinySA Ultra Plus - the most recent, powerful and CE compliant version.
Portable
Pocket-sized with internal battery & touch-screen.Powerful
Desktop & mobile apps provide extra functionality.Device Specifications
- Frequency Range: 100kHz - 900MHz, 5.4GHz in Ultra mode, 10GHz in Harmonic Mode
- Bandpass Filters: 2.6KHz - 640KHz
- Inbuilt Attenuator: -31dB > 0dB
- Resolution: 200kHz to 850KHz
- Display Points Per Scan: up to 450
- Signal Generator:
- Sine: 0.1MHz - 350MHz
- Square: 250MHz - 960MHz
- Calibration: Automatic
- Display: 4" Touchscreen 480x320 TFT
- Dimensions: 117mm x 72mm x 22mm
- Connectivity: USB-C
What's included
- 1x TinySA Ultra+
- 1x Telescopic SMA Antenna
- 1x Female-Female SMA through connector
- 2x SMA Male-Male extension cables
- 1x USB-A to USB-C Cable
