Introduction
If you're working with SDR, a Vector Network Analyser is a must-have tool to tune antennas, optimise performance and identify cable loss, SWR, and more.
For pentesters working in rapidly changing conditions, the NanoVNA-F will allow you to rapidly optimise your antenna to suit your target frequency and environment.
For example, when targeting remote controls on the 433MHz frequency, optimising a retractable antenna becomes rapid and intuitive; allowing for faster work and better performance.
The NanoVNA-F can be used via its touchscreen interface, or mobile and desktop applications for extended functionality and usability.
Covering 10kHz to 1500MHz, the NanoVNA is an affordable, powerhouse multi-tool that will always earn its place in an SDR / IoT everyday carry pack.
There are many variations and grey-market clones of the NanoVNA on the market; many use cheaper components to lower the price, but at the cost of accuracy and precision.

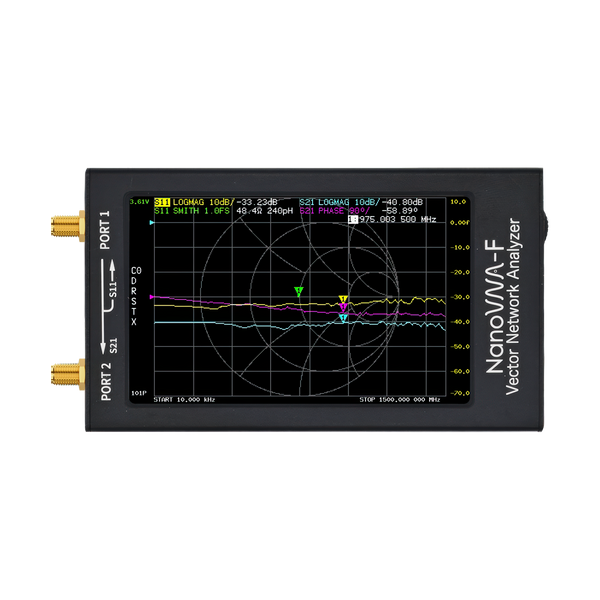

Lab401's NanoVNA is the official DeepElec version from BH5HNU, with guaranteed hardware revision of 3.1 and the metal case enclosure.
Portable
Pocket-sized with internal battery & touch-screen and solid metal case.Powerful
Desktop & mobile apps provide extra functionality.Device Specifications
- Frequency Range: 10kHz - 1500MHz (Extendable via alternative firmware)
- Measuring Range:
- 50kHz - 300MHz : 70dB
- 300MHz - 900MHz : 60dB
- 900MHz - 1500MHz : 40dB
- Display: 4.3" 800x480 IPS Touchscreen
- Dimensions: 140 x 75 x 20mm
- Connectivity: USB-C
- Battery: 5000mAh
- Case: Metal
What's included
- 1x DeepElec NanoVNA-F (Official Deepelec version from BH5HNU guaranteed HW 3.1), Metal Case
- 1x Calibration Kit
- 1x 50 Ohm Load SMA Calibration Terminator
- 1x Shorted SMA Calibration Terminator
- 1x Open Ohm SMA Calibration Terminator
- 1x Female-Female SMA through connector
- 2x SMA Male-Male extension cables
- 1x USB-A to USB-C Cable
- 1x USB-C to USB-C Cable
